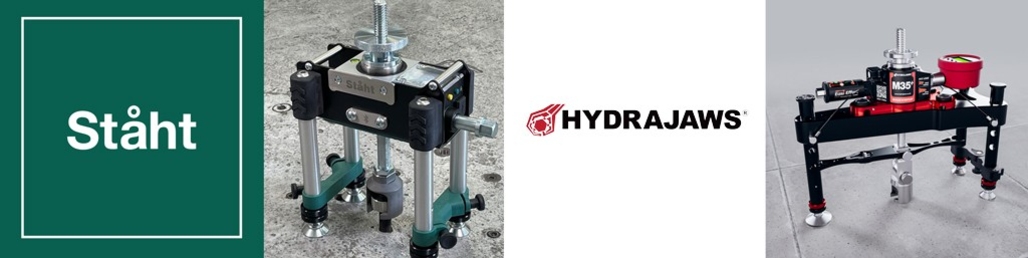

DUAL CAPACITY M35+ (35kN or 65kN)

The Hydrajaws M35+ Easi-Effort® Modular Digital Pull Tester can
test up to 35 kN or 65 kN on the same device, with an easily configurable
optional bridge setup, without the need of a separate tester.

This lightweight and ergonomic pull tester is enhanced by our Easi-Effort®
technology, increasing testing frequency and reducing operator effort.
It is an essential tool for carrying out pull testing procedures in line with
BS 8539, BS 7883, BS EN 795 and AEFAC-TN05.

The Hydrajaws M35+ introduces cutting-edge ‘Easi-Effort®’ technology, setting a new standard in the efficiency of applying torque for mechanical anchor pull testing. With a maximum torque of 9.8Nm at 35kN and 18.8Nm at 65kN, the M35+ demonstrates a remarkable reduction in required effort compared to its counterpart, the Hydrajaws M2050. While the M2050 demands 68Nm at 50kN, the M35+ achieves comparable results with a quarter of the torquing effort, making it an innovative and userfriendly solution for professionals in the field of anchor testing. This advance not only enhances operational efficiency but also underscores Hydrajaws’ commitment to delivering state-of-the-art tools that redefine industry standards.

TECHNICAL DATA

• M35+ Dual Load Capacity Modular Pull Tester Kit
• Pull-out load range: 0-35 kN/7,868 lbf
• Standard Bridge 0-65 kN/14,613 lbf
• Medium/Large Bridge Max torque: @35kN = 9.8Nm/7.2ft-lbs @65kN = 18.8Nm/13.9ft-lbs
• Weight: Tester only: 3.7kg/8.16lbs
• Standard kit with Rucksack: 8.7kg/19.18lbs
• Hydraulic Oil: Light Mineral DTE Type VISCOSITY 32
• Gauge IP Rating: IP54 *
• Operating temp. range: ‑10° C — +50° C (14° F – 122° F)
• Configurable units: kN, lbf
• Operating voltage: 9V
• Battery type: Rechargeable **
• Warranty: 12 months

• Certification and standards:
CE, UKCA
EMC Standard EN IEC 61326-1, EN 301 489-1,
EN 301 489-17,
RoHs Directive IEC 63000
Radio Equipment Directive ETSI EN 300 328 V2.2.2,
EN 62479
Machinery Directive Type A EN ISO 12100:2020, EN
ISO 4412:2010
Low Voltage Directive IEC 61010-1
Part #: 290-001 (Dual Metric)
Part #: 290-002 (Dual Imperial)
Part #: 290-003 (Standard Metric)
Part #: 290-004 (Standard Imperial)
