ASPHALT FIXING CHEMBOLT™

 Back to products menu

CHEMFIX ASPHALT fixing system for use with chemical anchoring.

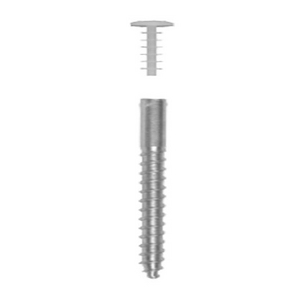

A metal anchor bolt with an internal thread which is designed for removable fixings in asphalt, combined with a chemical anchor resin for high durability and ease of fixing.

Link to reseller

https://www.sealantsonline.co.uk/ProductGrp/004400510001

CHARACTERISTICS:

• M12 or M10 internally threaded socket.
• Steel: 11SMnPb30+C
• Designed for use in Asphalt or Tarmac.
• Proven durability.
• Imparts no stress to the surrounding area (unlike expansion anchors).
• Ideal for speed bumps, signs, and other temporary fixings in ashpalt.
• Economical, fast and easy to use.
• Works with chemical anchoring.
• Sockets with internal thread for removable bolt.


THESE FIXINGS WHEN USED WITH CHEMICAL ANCHOR RESIN ARE CAPABLE OF AROUND 1kN TO 1.8kN TENSION LOADS - THIS IS DEPENDENT ON THE QUALITY AND DEPTH OF TARMAC AND THESE ARE VERY CONSERVATIVE ESTIMATES. HIGHER LOADS ARE POSSIBLE BUT ON SITE TESTS ARE RECOMMENDED. AS A RESULT WE DO NOT PUBLISH LOAD DATA.

THESE FIXINGS ARE SUPERIOR TO EXPANSION ANCHORS IN TARMAC AS THEY DO NOT IMPART STRESS ON THE FIXING AREA EITHER DURING INSTALLATION OR THROUGHOUT ITS LIFE.

In the Elephant and Castle project which you can download in the case study link below, loads of 4.5kN were achieved using undercut drill holes.

AVAILABILITY:

 4 Diameter and lengths

Click the "+i" icon to the right to download a recent case study involving Chembolts.

Documentation & Support
Additional Information Additional Information
Product Data Sheet Product Data Sheet
Art. No. Specification Content Pack
65368 Chembolt Fixing M10 x 70 mm 50
65369 Chembolt Fixing M10 x 100 mm 50
65370 Chembolt Fixing M12 x 70 mm 50
65371 Chembolt Fixing M12 x 100 mm 50

See the documentation in other languages
  Product Data Sheet Safety Data Sheet Additional Information DOP
Català
Español
中文
Français
Italiano
Português
