VINYL ECO / EASF

A two component chemical anchoring injection system. A formulation derived from a vinylester based styrene free resin with high bond strength, developed principally to anchor threaded rods into concrete. Used widely for medium to high loads.

CHARACTERISTICS:

• Suitable for high loads within standard annulus and embedments.
• Fast working times for early loading in time sensitive applications.
• No styrene allows for use indoors and in enclosed spaces.
• Use in wet or damp environments and fixing holes.
• Good durability formulation, resistance to chemicals.
• Used for studs and relatively small diameter rebar.
• 10:1 resin available in a variety of cartridge types.

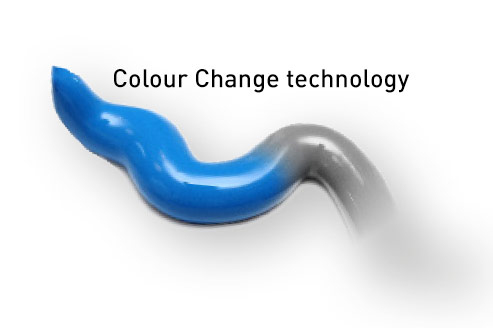

• Available with colour change technology (Blue to Grey gel indicator)
• Fixings in concrete, wood, or other high strength materials.

APPROVALS / REPORTS:

• 18/0800 - ETA - EAD 330499-00-0601 - Concrete M8-M24 Threaded Bars 8-25mm rebars Option 7
• 18/0799 - ETA - EAD 330076-00-0604 - Masonry M6-M12
• CE Certified 1404-CPR-3054, 3053 - ZAG, Slovenia.
• WRAS Approved for use with Potable drinking water approval no. 1810566
• LEED tested 2009 EQ c4.1 SCAQMD rule 1168 (2005.)
• VOC A+ Rating (Volatile Organic Content)
• VOC Emission Test Report - Indoor Air Comfort GOLD®

AVAILABILITY:

• 165 ml | 300 ml | 345 ml | 380-410 ml | 825 ml.
